Stiebel Eltron 074371 fittings accessories DMV/ZH 1

In stock

SKU: 312899

Price on request

€121.66

€0

Overview

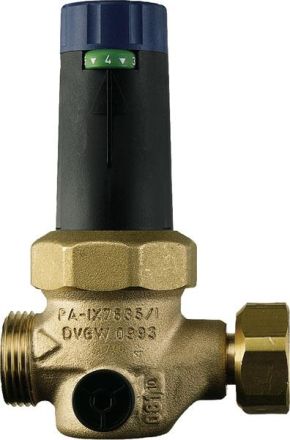

Special pressure reducing valve G 1 as a supplement to ZH 1 if the static pressure at the installation location is greater than 0.48 MPa (4.8 bar)

Property	Value
Material of the housing:	Brass
Material quality:	Brass, dezincification-resistant (DZR)
Nominal inside diameter:	DN 20
Connections:	External thread (metric)
Article pressure level:	PN 16
Flange pressure level:	other
Max. filling pressure:	6 bar
Reduced pressure:	1.5 bar
Max. medium temperature (continuous operation):	30 °C
Min. Medium temperature (continuous operation):	5 °C
Surface:	untreated
Seal:	rubber/plastic
Suitable for liquids:	yes
Suitable for steam:	no
Suitable for gases:	no
