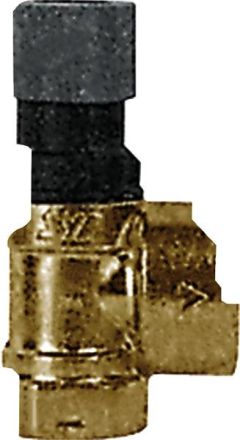

Stiebel Eltron 074374 safety valve SV 3/4-6

In stock

SKU: 312730

Price on request

€31.14

€0

Overview

Connection: 3/4 inch, response pressure: 6, safety valve G 3/4, response pressure 0.6 MPa (6 bar), for hot water tanks up to 1000 liters and 0.6 MPa (6 bar) max. operating pressure

Property	Value
Design:	right-angled
Material quality:	Brass, dezincification-resistant (DZR)
Connection 1:	Internal thread (metric)
Nominal inner diameter connection 1:	3/4 inch (20)
Connection 2:	Internal thread (metric)
Nominal inside diameter connection 2:	1 inch (25)
Article pressure level:	PN 6
Max. medium temperature (continuous operation):	110 °C
Min. Medium temperature (continuous operation):	-10 °C
Surface:	untreated
Bellows valve:	no
Seal:	rubber/plastic
Overflow pressure:	6 bar
Suitable for continuous operation:	yes
Height:	98 mm
