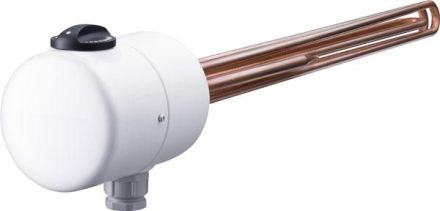

Connection type: screw connection, connected load: 5.7kW, design: universal flange, operating pressure: 10 bar, immersion depth: 455 mm, nominal voltage 1: 230 V, nominal voltage 2: 400 V, safety temperature limiter: yes, temperature setting: 80 ° C, heating element material: copper, screw-in heating element for the SB, SBB and SBP storage tanks. Can also be used in heating systems in accordance with DIN 4751 and drinking water heating systems in accordance with DIN 4753 (note immersion depth). Screw-in heating element with enclosed extension G1 1/2 x 45 mm for screwing through the thermal insulation. Continuously variable temperature setting from approx. 10 degrees C to 80 degrees C (depending on the installation position), temperature limitation to 45/60/80 degrees C possible. Built-in temperature controller with safety temperature limiter (combination) with all-pole shutdown. Materials radiator/protective tube: Cu. Screw-in connection: Cu Zn (brass) thread G 1 1/2 with PTFE seal. Permissible operating pressure 1.0 MPa. Quality and safety symbols: VDE/GS symbol, radio protection symbol, IP44 (splash-proof). Screw-in radiator for the SB, SBB and SBP storage tanks. Can also be used in heating systems in accordance with DIN 4751 and drinking water heating systems in accordance with DIN 4753 (note immersion depth). Screw-in radiator with enclosed extension G1 1/2 x 45 mm for screwing through the thermal insulation. Continuously variable temperature setting from approx. 10 degrees C to 80 degrees C (depending on the installation position), temperature limitation to 45/60/80 degrees C possible. Built-in temperature controller with safety temperature limiter (combination) with all-pole shutdown. Materials heating element/protective tube: Cu. Screw-in connection: Cu Zn (brass) thread G 1 1/2 with PTFE seal. Permissible operating pressure 1.0 MPa. Quality and safety marks: VDE/GS mark, radio protection mark, IP44 (splash-proof).
