Stiebel Eltron 159339 Accessories for ventilation systems silencer DN 160 0.6 m

In stock
SKU: 313037
€211.72
Into a basketIn the basketGo

Overview

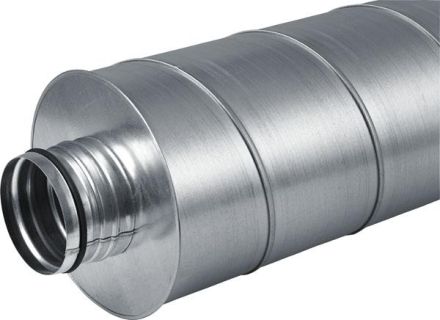

Nominal diameter: 160mm, silencer consisting of an outer tube, a perforated inner tube and two connection ends with double lip seal. The space between them is filled with sound-absorbing insulation material. A glass fleece between the inner pipe and the insulation prevents the insulation material from coming into contact with the air flow.

Property Value
Inner pipe material: other
Outer pipe material: Steel, Sendzimir galvanized
Nominal diameter of duct: 160 mm
Inner diameter: 160 mm
Outer diameter: 280 mm
Flexible: no
Connection 1: Insertion end
Connection 2: Insertion end
With pre-assembled seal: yes
Insulation thickness: 60 mm
Material of the insulation: Rock wool
Max. Medium temperature (continuous operation): 100 °C
Attenuation 63 Hz: 1.2 dB
Attenuation 125 Hz: 4.8 dB
Attenuation 250 Hz: 7.2 dB
Attenuation 500 Hz: 14.4 dB
Attenuation 1000 Hz: 24 dB
Attenuation 2000 Hz: 26.4 dB
Attenuation 4000 Hz: 16.8 dB
Attenuation 8000 Hz: 12 dB
Working length: 600 mm

Characteristics

Connection 1Insertion end
Inner diameter160 mm
Connection 2Insertion end
ManufacturerStiebel Eltron
HAN159339
GTIN4017211593395
Outer diameter280 mm
FlexibleNo
Material of the insulation materialRock wool
