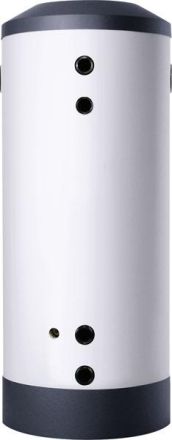

Stiebel Eltron 185458 Accessories heating hydraulics SBP 200 E

In stock
SKU: 313006
€948.28
Into a basketIn the basketGo

Overview

Heating connection: 2 inches, heat pump connection: 2 inches, ventilation connection sleeve: 3/4 inches, weight: 58 kg, height: 1535 mm, max. operating pressure: 3 bar, max. storage temperature: 95 ° C, with thermal insulation: yes, water content: 200 l, storage tank for the installation of heat pump systems, they are used for system separation, to extend the heat pump running times and partly to bridge tariff shutdown times, storage tank for hydraulic decoupling of the volume flows of the heat pump and heating circuit, the use of BGC screw-in radiators is possible, the thermal insulation as PU direct foam ensures particularly low heat losses and is protected with a high-quality plastic outer shell

Property Value
Height: 1535 mm
Suitable for central heating: yes
Suitable for heat pump: yes
Installation type: Standing model
Barrel material: steel
Inside surface protection: untreated
Shell material: plastic
With insulation: yes
Contents: 207 l
Diameter: 630 mm
Max. working pressure: 3 bar
Max. Temperature: 95 °C
Connection 1: External thread
Connection dimension 1: 2 inches
Connection 2: External thread
Connection dimension 2: 2 inches
With electric heating element: no
Connection electrical element: other
With temperature sensor connection: yes
Number of connections Temperature sensor: 3
Connection dimensions temperature sensor: other

Characteristics

Connection 1External thread
Connection 2External thread
ManufacturerStiebel Eltron
HAN185458
GTIN4017211854588
Diameter630 mm
Height1535 mm
Contents207 litres
Mounting typeStand model
