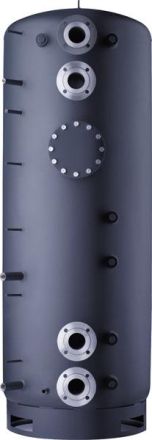

Stiebel Eltron 227588 buffer tank SBP 1000 E cool

In stock
SKU: 312741
€3,004.48
Into a basketIn the basketGo

Overview

Width: 822mm, Weight: 181kg, Height: 2300mm, Max. operating pressure: 3bar, Max. additional electrical heating: 48kW, With thermal insulation: no, Depth: 946mm, Water content: 1000l, Buffer storage for the hydraulic decoupling of the volume flows of heat pumps and heating circuit/cooling circuit. The storage tank is pre-insulated to be diffusion-tight for cooling purposes and serves as a system separation storage tank to extend the heat pump running time and to partially bridge tariff shutdown times. Optional addition by equipping the flange opening and 6 screw-in sockets. - Suitable for cooling, use for heating and cooling operation - Pre-insulated to be diffusion-tight - Use in conjunction with large heat pumps, e.g. B. from WPF 40 Without thermal insulation, this must be ordered separately as special accessory WD 1000/1500 cool!

Property Value
Height: 2300 mm
Suitable for central heating: yes
Suitable for heat pump: yes
Installation type: Stand model
Barrel material: steel
Surface protection inside: untreated
With insulation: no
Content: 1006 l
Diameter: 822 mm
Diameter without insulation: 822 mm
Max. working pressure: 3 bar
Max. Temperature: 95 °C
Connection 1: Flange
Connection dimension 1: DN 80
Connection 2: Flange
Connection dimension 2: DN 80
With electric heating element: no
Connection electrical element: other
With temperature sensor connection: yes
Number of temperature sensor connections: 6
Temperature sensor connection dimensions: other

Characteristics

Connection 1Flange
Connection 2Flange
ManufacturerStiebel Eltron
HAN227588
GTIN4017212275887
Diameter822 mm
Height2300 mm
Contents1006 liters
Mounting typeStand model
