Stiebel Eltron 232983 silencer LWF S 180 - 0.9

In stock
SKU: 312804
€229.97
Into a basketIn the basketGo

Overview

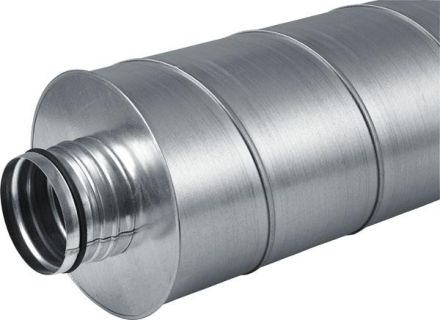

Silencer consisting of an outer tube, a perforated inner tube and two connection ends with double lip seal. The space between them is filled with sound-absorbing insulation material. A glass fleece between the inner pipe and the insulation prevents the insulation material from coming into contact with the air flow.

Property Value
Inner pipe material: other
Outer pipe material: steel, Sendzimir galvanized
Nominal diameter of duct: 180 mm
Inner diameter: 180 mm
Outer diameter: 290 mm
Flexible: no
Connection 1: Insertion end
Connection 2: Insertion end
With pre-assembled seal: yes
Insulation thickness: 55 mm
Material of the insulation: Rock wool
Max. Medium temperature (continuous operation): 100 °C
Attenuation 63 Hz: 1.8 dB
Attenuation 125 Hz: 6.3 dB
Attenuation 250 Hz: 9.9 dB
Attenuation 500 Hz: 18.9 dB
Attenuation 1000 Hz: 33.3 dB
Attenuation 2000 Hz: 35.1 dB
Attenuation 4000 Hz: 23.4 dB
Attenuation 8000 Hz: 18 dB
Working length: 900 mm

Characteristics

Connection 1Insertion end
Inner diameter180 mm
Connection 2Insertion end
ManufacturerStiebel Eltron
HAN232983
GTIN4017212329832
Outer diameter290 mm
FlexibleNo
Material of the insulation materialRock wool
