Stiebel Eltron 233012 silencer LWF SR 160 - 0.5

In stock
SKU: 312803
€187.08
Into a basketIn the basketGo

Overview

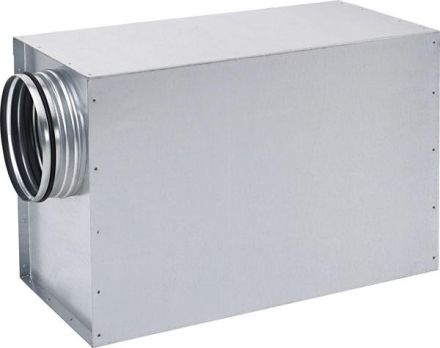

Silencer consisting of a rectangular outer casing, a perforated inner tube and two connection ends with rolling ring seal. The space between them is filled with sound-absorbing insulation material. A glass fleece between the inner tube and the insulation prevents the insulation material from coming into contact with the air flow. The rectangular shape achieves particularly high attenuation in the lower frequency range.

Property Value
Material: Steel, Sendzimir galvanized
Nominal width of channel: 160 mm
Nominal height of channel: 160 mm
Length: 520 mm
Connection 1: Channel connection profile
Connection 2: Channel connection profile
Backdrop thickness: 170 mm
Damping 63 Hz: 4 dB
Damping 125 Hz: 7.6 dB
Damping 250 Hz: 7.6 dB
Damping 500 Hz: 13.6 dB
Damping 1000 Hz: 26.7 dB
Damping 2000 Hz: 24.2 dB
Attenuation 4000 Hz: 17.4 dB
Attenuation 8000 Hz: 12.1 dB

Characteristics

Connection 1Channel connection profile
Connection 2Channel connection profile
ManufacturerStiebel Eltron
HAN233012
GTIN4017212330128
Length520 mm
MaterialSteel, sendzimir galvanized
