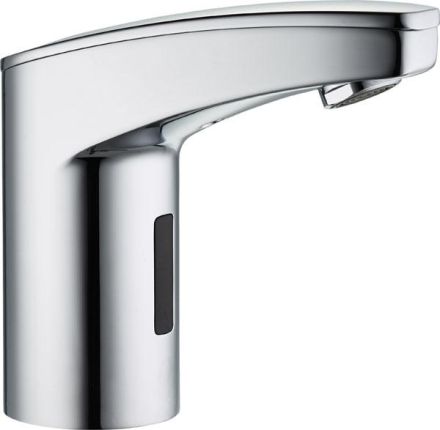

Stiebel Eltron 238821 WSN 10 sensor fitting

In stock
SKU: 513089
€555.57
Into a basketIn the basketGo

Overview

APPLICATION: Contactless electronic sensor fitting in a pressureless design for open (pressureless) small storage tanks or instantaneous water heaters. EQUIPMENT AND COMFORT: The contactless operation and activatable automatic hygiene circuit guarantee the highest possible hygiene standards. Low water consumption thanks to infrared sensors (fully automatic setting), functionally reliable solenoid valve (low pressure surges) and economy jet regulator. Freely selectable or fixed temperature possible. Short-time off for cleaning the sink, permanent on for filling. Adjustable water run-on time and sensor sensitivity via touch operation. Modern design for all areas of application in business, public institutions or for private applications.INSTALLATION AND SERVICE: Simple installation like a conventional single-lever mixer. Sensor fitting with plug-in power supply for maintenance-free operation (no battery change necessary). Flexible pressure hoses for the hot and cold water connection. Modular monoblock without substructure. Compatible with service monitor for checking stored operating data, settings and controlling functions.SAFETY AND QUALITY: Adjustable hot water lock. Built-in check valve and dirt strainer. Chrome-plated, robust metal housing

Property Value
Type of control: Infrared
Self-closing: yes
Type of temperature control: manual operation
Tap material: other
Surface: chrome-plated
Surface treatment: polished
Mounting type: Plate/fitting hole
Suitable for bidets: no
Suitable for wash basins: yes
Suitable for wash basins: no
Suitable for showers: no
Suitable for bath / shower waste water: no
Number of fitting holes: 1-hole
Design of built-in fitting: Mounted part
Flow connection: Hose (screw connection)
Supply connection size: 3/8 inch
With outlet: yes
Drain design: fixed at the top
Faucet mouthpiece: jet regulator
Outlet type: pipe
With diverter unit: no
Extendable side shower: no
Extendable inlet with Perlator: no
Extendable inlet with hand shower: no
With shut-off valve for connecting external devices: no
Type of shut-off valve for external device: electronic
Type of power supply: Mains operation
With transformer: yes
Connection voltage: 230 V
Power reserve battery: no
Protection class (IP): IP54
With backflow protection: no
Backflow protection according to EN 1717: EB
Temperature limitation: yes
With couplings: no
With filter: yes
Couplings lockable: no
With rosettes/cover plate: no
Total installation height: 131 mm
Installation height lower edge of tap outlet: 103 mm
Drain projection: 143 mm
Adjustable flush time: yes
Flush time: 0.5 to 10 s
Automatic flush cycle: yes
Flush cycle frequency: 12 to 48 h
Programming: manual
With building management system connection: no
With pull rod/drain device: no
With chain eyelet: no
Suitable for boiling water: no

Characteristics

With transformerYes
Connection voltage230 V
HABWSN10
ManufacturerStiebel Eltron
HAN238821
GTIN4017212388211
Mounting typePlate/fitting hole
SurfaceChrome-plated
IP protection)IP54
