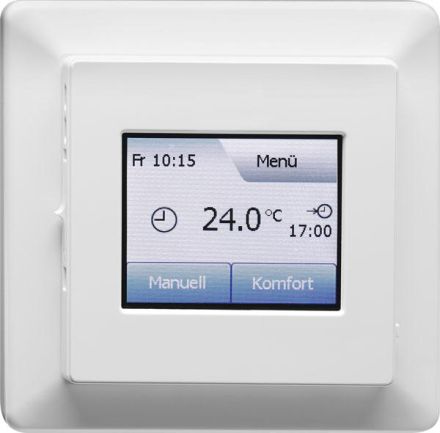

Stiebel Eltron 238912 RTU-TC room temperature controller

In stock
SKU: 513112
€198.02
Into a basketIn the basketGo

Overview

Electronic room temperature controller for maximum temperature comfort and optimal energy consumption with intuitive touchscreen operation. Integrated room temperature sensor with limitation function, perfect for modernizing the existing system. Can be adjusted to personal needs using individually definable weekly programs and menu-guided 4 or 6-interval programming. Weekly program preset at the factory. Large, easy-to-read and illuminated TFT full-color touch display, shows the operating functions heating ON, heating OFF, manual operation, automatic operation, party mode, boost mode, frost protection, vacation mode and error messages. Operating modes can be easily selected using the shortcut button. Self-adapting, adaptive control enables automatic calculation of heating times. Integrated limitation and blocking of the temperature setting range possible. Factory setting for all functions with simple reset function. Display of energy consumption for the past week, month and year. Flush-mounted installation in conjunction with almost all design variants of the switch ranges.

Property Value
Type of power supply: 230 V AC
Mounting type: Modular device for installation switch ranges
Protection class (IP): IP21
RAL number: 9010
Height: 84 mm
Width: 84 mm
Depth: 40 mm
Heating: yes
Number of heating outputs: 1
With display: yes
Operation: Button
Design: On/Off
With receiver: no
External sensor: no
Thermal feedback: parallel
Control characteristics: other
Difference adjustable: yes
Temperature readable: yes
With noise level display: no
Sensor design: Resistance sensor
With drinking water circuit: no
Max. voltage of the contacts: 240 V
Max. Contact load: 16 A
Explosion-proof: no
Power consumption in standby mode (solstandby): 0.5 W

Characteristics

OperationButton
Sensor/sensor designResistance sensor
Temperature can be readYes
HABRTU-TC
ManufacturerStiebel Eltron
HAN238912
GTIN4017212389126
VersionOn off
Width84 mm
Explosion-proofNo
Height84 mm
With displayYes
Mounting typeModular device for installation switch programs
RAL number9010
IP protection)IP21
Depth40 mm
