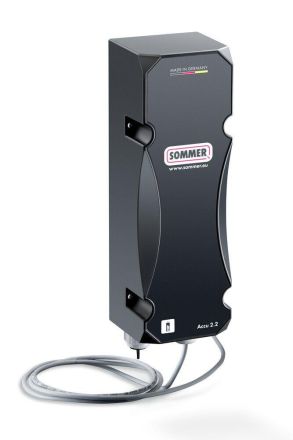

Accu 2.2, 24V 2200mAh 322x105x105 ML, including integrated charging electronics, ACCU Pb INCLUDED
With the Accu 2.2., SOMMER offers another variant with a capacity of 2200 mAh, which is designed for a bridging time in the event of a power failure of >36 hours or max. >75 door travel cycles.
The Accu 2.2. is equipped with 2 lead-acid batteries (leak-proof) which are installed in a plastic housing including the charging electronics. The housing is suitable for ceiling and wall mounting and has protection class IP54. The charging electronics are equipped with a fine fuse of type: 3.15 AT (250V).
The Accu 2.2. is delivered with a connection cable (2,000 mm) that is connected to the charging electronics at the factory, the opposite side is designed with a 2-pin plug and is simply connected via plug and play to the drive side (Accu slot).
The Accu 2.2. is currently intended for the following products:
Technical data:
