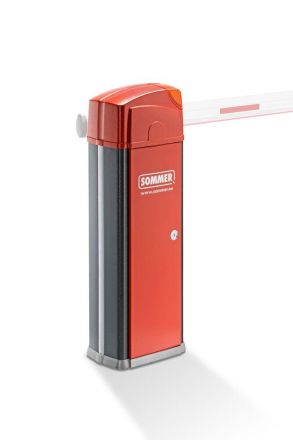

ASB-Alu right-closing, 868.95MHz 230V 50-60Hz SOMMER version, anthracite/red without barrier boom, incl. 1x 4019V000
With bidirectional radio system SOMloq2
They protect against unauthorized access in just a few seconds. Whether you want to protect car parking spaces, properties or parking lots, with our barriers we have the right solution for you and your customers. Simple and quick installation is just as important to us as perfect coordination with our swing and sliding gate drives.
Scope of delivery
- Barrier in aluminum housing (max. 350 cycles/day)
- Radio receiver FM 868.95 MHz (SOMloq2)
- integrated motor control
- 4-command handheld transmitter Pearl Vibe (# 4019V000)
Product advantages
Flexible adjustment
The barrier boom can be shortened to an exact size on site. This creates a custom-made product directly on the construction site.
Safety through obstacle detection
The automated obstacle detection ensures that the barrier opens automatically when it encounters an obstacle (reversion) and no vehicle is trapped. The operating forces of our barriers are certified according to EN 12453.
Cost-effective installation
Thanks to Plug and Go, installation is completed by setting up and connecting.
Emergency release in the event of a power failure
In the event of a power failure, the barrier can be mechanically released in an emergency to open or close the barrier. Alternatively, the barrier can be operated in an emergency with our battery pack.
Connections for safety accessories
All connections for safety-relevant accessories are already available.
Service interface for specialist dealers
The intelligent SOMlink control technology offers additional options for adjusting properties and parameters using a web app.
Radio
- bidirectional radio
- individual function assignment when the user teaches in the radio: pulse operation, multifunction relay, defined OPEN/CLOSE
- tangible quality thanks to confirmation of the radio signal through vibration feedback (with suitable transmitter)
- gate status display
- targeted light control
- trained at the factory
- reduction in radio radiation exposure despite higher data throughput thanks to packet mode
- increased reliability and range through active forwarding (hop function)
- 128-bit AES encryption
- Auto-repeat function for convenient opening while approaching the object
- Distance-dependent dead man function for setup mode
Connection options
Light barrier
Connection option for a 2/4-wire light barrier
Induction loop
Connection option for two induction loops (potential-free contact from a separate evaluation unit)
External consumers
For supplying external consumers with 12 V or 24 V
Defined OPEN/STOP/CLOSED
Connection option e.g. for a 3-way button
External button
Connection option for an emergency stop button
Alarm
Connection option for a potential-free normally open contact of a fire alarm system
Warning light
Connection option for a warning light 24 V/3 W
Timer
One connection option each for a timer contact for the request side inside and outside.
Traffic light
With the optional additional equipment Relay, a red and green traffic light (24 V/7 W) can be connected.
Additional equipment
With our additional equipment you generate your own optional added value. The modular system structure enables you to expand barriers with the SOMloq2 radio system according to the 'plug and play' principle with numerous accessories. All accessories can be easily installed as the slots are color-coded and labeled.
