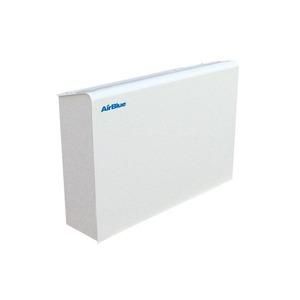

The AirBlue SBA swimming pool dehumidifiers are chest units that are installed directly in the swimming pool. 5 models are available with maximum dehumidification capacities of 49 to 190 l/day (at 30°C/80% RH). The units may only be operated with chlorine. Thanks to their particularly simple installation, the operator is largely spared dirt and other nuisances during installation, and installation costs are low. Apart from the power supply and condensate drain, no other connections are necessary. The elegant and robust housing in pure white (RAL 9010) blends inconspicuously and unobtrusively into the architecture of the swimming pool thanks to its low installation depth of 260 or 310 mm and does not require much space. The particularly efficient R410A is used as the coolant. The heat energy released via the heat pump circuit is completely fed back into the room, which contributes to considerable savings in heating energy. For further heating, an optional PWW heating register is available which can be connected to the heating network. This means that the air in the swimming pool hall can be heated quickly when required. The internal control electronics ensure that operation is as economical as possible. All control functions are very easy for the user to set. The AirBlue SBA swimming pool dehumidifier's cooling circuit only uses tried and tested technology from renowned brand manufacturers, and all components are housed in the compact housing. A wide range of options such as pump hot water heating registers, electronic and mechanical hygrostats, feet, etc. offer the user additional comfort depending on requirements and intended use. Efficient circulating air dehumidification, energy efficient thanks to the heat pump principle, low-noise fan, easy installation and operation, corrosion-resistant paint, fully electronic Dixell controller. Dehumidification capacity 30°C / 80% r. H. is 190.0 l/d, dehumidification capacity 30°C / 60% r. F. is 143.5 l/d, dehumidification capacity 27°C / 60% r. F. is 131.7 l/d, dehumidification capacity 20°C / 60% r. F. is 96.6 l/d, maximum power consumption 3.1 kW, power consumption 30°C / 80% r. F. is 2.5 kW, nominal current consumption 13.2 A, peak current 63.7 A, output of pump hot water register at 30°C room temperature and 80/70°C water temperature, compressor off is 11.8 kW (optional), output of electric heating register is 6.0 kW (optional), sound power level 61 dB(A), sound pressure level 54 dB(A), voltage supply 230/1/50 V/~/Hz, dimensions (H x W x D) 836 x 1310 x 310 mm, weight 102 kg, air volume flow 1650 m³/h, external pressure 40 Pa, refrigerant R410A, GWP 2088 kgCO2eq., refrigerant content 1.20 kg, operating range 20°C to 36°C and 50% to 99% r. F., with built-in hygrostat. The specifications of VDI 0100-702 regarding the arrangement of the device in the swimming pool must be strictly observed. In principle, the devices should be installed in Zone 2 according to 0100-702, i.e. at a distance of > 2 m from the edge of the pool. In small swimming pools whose dimensions do not permit installation in Zone 2, the device can also be installed closer to the edge of the pool. Here, however, a distance of > 1.25 m from the edge of the pool and > 0.3 m from the floor must be maintained. The distance to showers and sinks should also be > 1.25 m.
| Property | Value |
| Max. Dehumidification capacity per 24 hours: | 190 l |
| Operating temperature: | 20 to 36 °C |
| Number of fan speeds: | 1 |
| Air flow rate: | 1650 m³/h |
| Connection voltage: | 230 V |
| Power consumption: | 3.1 W |
| Sound power level: | 61 dB(A) |
| With air filter: | yes |
| Movable: | no |
| Fill indicator: | no |
| Height: | 836 mm |
| Width: | 1310 mm |
| Depth: | 310 mm |
