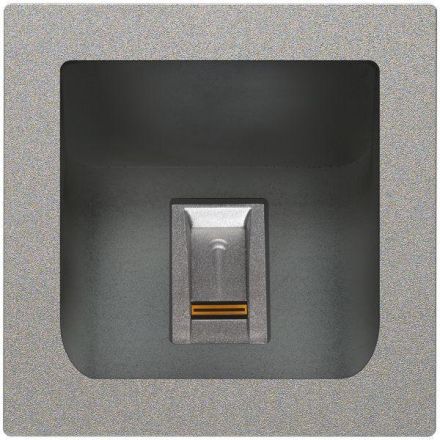

Fingerprint scanner module for outdoor stations with individual configuration, flush-mounted installation, can be integrated behind 3 mm front panels, flush-mounted installation for front panels from 1.5 mm to 2.5 mm using the spacer plates provided, visible front dimensions 82 mm x 82 mm (cut-out), module grid spacing 120 mm, scope of delivery: - fingerprint scanner module, - control unit in a series-mounted housing (4TE), - power supply unit in a series-mounted housing (3TE), stand-alone device, memory for up to 99 fingerprints / user (manual reading), security in the event of a power failure: data is saved and is not lost, adjustable security code for configuration, fingerprint scanner module and control unit are tamper-proof, clearly assigned to each other, recommended cable JY(ST)Y 4x2x0.8, easy commissioning and operation via the control unit, biometric characteristics FAR 1.0 x 10-6 at FRR 1.4 x 10-2, door opener function with potential-free relay contact (changeover contact: 42 VAC/DC / 2 A), optical acknowledgement when a finger is recognized, power supply 230 V AC via series-mounted power supply, to operating voltage, operating voltage control unit: 8-24V AC/DC, control unit supplies fingerprint scanner module, power consumption fingerprint scanner module approx. 1 W, permissible ambient temperature (fingerprint scanner): - 25 degrees C to + 55 degrees C, use indoors and outdoors protected from precipitation, moisture on the fingerprint scanner leads to functional restrictions or failure, mounting height for the fingerprint scanner module: lower edge > 1200 mm, dimensions: H 105 x W 105 x D 48, dimensions control unit: H 86 x W 70 (4TE) x D 54, dimensions transformer: H 110 x W 35 (2TE) x D 60, material: aluminum, anodized silver, material fingerprint scanner: plastic
| Property | Value |
| Installation technology: | Bus system |
| Color: | Silver |
| Width: | 105 mm |
| Height: | 105 mm |
| Depth: | 48 mm |
| Design: | Key operation |
| Number of users: | 99 |
