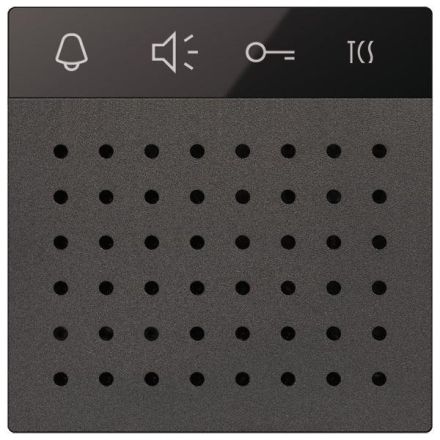

TCS AMI11110-0057 TCS:BUS black anodized speech module

Central module for outdoor stations of the AMI series with individual configuration, flush-mounted installation, can be integrated behind 3 mm front panels of the ZAU2xxx mounting sets and the K3xxx communication columns, flush-mounted installation for front panels from 1.5 mm to 2.5 mm using the spacer plates provided, visible front dimensions 82 mm x 82 mm (cut-out), module grid spacing 120 mm, implementation of the main functions of door call, speaking and door opening on the outdoor station, pictogram display door call (yellow), speaking (green), door opening (blue), can be deactivated with the configo configuration software, integrated twilight switch, threshold value can be set in 8 levels with the configo configuration software, background lighting mode can be set with the configo configuration software, connection with another module, e.g. bell button module AMI 109xx-00x0, or with service device via 4-pin connector under protective cover, combination with other Modules of the AMI series except display and loudspeaker module AMI10105, keypad module AMI10300, rotary wheel module AMI104x0 and except built-in door loudspeaker module AMI11100, voice-controlled hands-free talking (standard), full-duplex hands-free talking for indoor stations can be activated with a handset, 2 indoor stations can be assigned to each on-site bell button, acknowledgement tones can be set with the service device and with the configo configuration software, status display for operating mode and errors, acoustic error output, call volume and acknowledgement tone volume can be set manually, plug-in memory for exchanging identical TCS:BUS speech modules AMI11110, firmware update via ISP interface, plug-in screw terminals for connection to the TCS:BUS, plug-in screw terminals for external camera, R terminal for connecting a door opening function extension, door opening time on R terminal ex works: 4 seconds can be set with the service device and with the configo configuration software, Light switch function (via the door opener button on the indoor stations) can be set with the service device and with the configo configuration software, talk time ex works: 56 seconds can be set with the service device and with the configo configuration software, door standby time (to control the short-term storage in indoor stations) ex works: 56 seconds can be set with the config configuration software, door opener can only be set with the configo configuration software when the door is ready, speech connection during the door standby time can be set with the service device and with the configo configuration software, storage of a maximum of 10-digit phone number for direct telephone dialing is possible when the FBO1100 direct dialing function is activated via TCS:BUS interface for the PBX, 3-wire technology required, tested according to DIN EN 50486, input current: I (a) = 0.1 mA I (P) = 5.9 mA at rest, maximum input current: I (Pmax) = 13.5 mA, permissible ambient temperature: -25 degrees C up to +55 degrees C, dimensions: H 105 x W 105 x D 26, material: mounting plate aluminum anodized black
