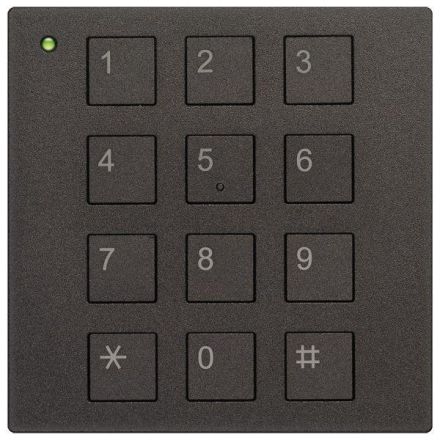

Code lock module for outdoor stations with individual configuration, flush-mounted installation, can be integrated behind 3 mm front panels, flush-mounted installation for front panels from 1.5 mm to 2.5 mm using the enclosed spacer plates, visible front dimensions 82 mm x 82 mm (cut-out), module grid spacing 120 mm, LEDs for status display, optical and acoustic acknowledgement when entering the code, TCS-BUS capable, 10 access codes (max. 6 digits) with individual trigger functions, - door opener function with potential-free relay contact (changeover contact: 24 V DC / 2 A), - general and specific control functions, a master code for maintenance and configuration, manual programming, can be switched to keyboard mode, 3-wire technology required, input current: I(a) = 0.4 mA, I(P) = 14 mA, maximum input current: I(Pmax) = 59 mA, permissible ambient temperature: -25 degrees C to 55 degrees C, dimensions: H 105 x W 105 x D 19, material: aluminum, anodized black
