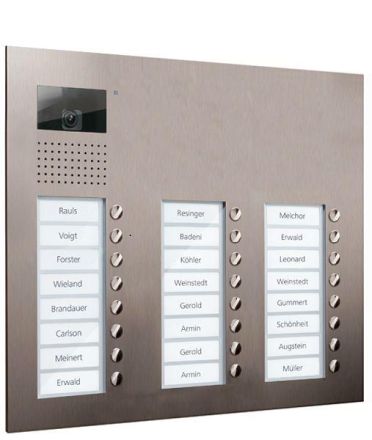

TCS video outdoor station for flush mounting, AVU16240-0030, 24 bell buttons 3 columns, stainless steel, Manufacturer: TCS TürControlSysteme AG, Production: Made in Germany, Article number: AVU16240-0030, IMAGE / VIDEO FEATURES, Color camera with image sensor 1/4' single-chip CMOS, diagonal detection angle: 130 degrees, Resolution, maximum (pixels x pixels): PAL: 648 H x 488 V, Resolution: 380 H TVL Color, Lens 2.0 mm, F=2.5, Light sensitivity: 1.0 lx (F 1.2), Video output signal: (differential, coaxial) 1.1 Vp-p., DEVICE FEATURES, Video outdoor station, Number of bell buttons: 24, Mounting type: flush mounting, Housing type: front panel with Flush-mounted box, Housing material: brushed stainless steel, Bell button material: metal with maintenance-free contacts, shatter-proof nameplate glass, energy-saving LED nameplate lighting, Opening principle: win:clip, Voice output volume: adjustable, Microphone sensitivity volume: adjustable, EXTENDED FEATURES, Light switch function: on each bell button, Name/information field: white backlit, Number of wires: 6-wire required, Installation mix audio, video, Access in one system: possible, Configuration options: manual, with service device, with configuration software, System configuration memory: interchangeably plugged in, TECHNICAL DATA, Technology: 2-wire TCS:BUS, Current consumption, idle: 173 mA, Current consumption, maximum: 178 mA, Front panel HxWxD mm: 340x398x3, UP box HxWxD mm: 291x347x40, Camera field HxW mm: 40x72, nameplate HxW mm: 19x62, permissible ambient temperature: -20 to +50 °C, UV resistance: unlimited, recommended installation height: 1.6 m, SCOPE OF DELIVERY, for changing the nameplate: win:clip key, for labelling: nameplates, ACCESSORIES, hollow wall mounting set for flush-mounted boxes: ZAU4001
| Property | Value |
| Installation technology: | Bus system |
| Color: | other |
| Installation type: | Flush-mounted |
| Width: | 398 mm |
| Height: | 340 mm |
| Depth: | 3 mm |
| With information sign: | no |
| With camera: | yes |
| With cover: | yes |
| Protection against vandalism: | yes |
| Modular construction: | no |
