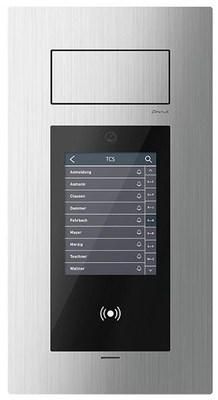

TCS CAE3003-IP-0150 IP-Video anodized silver video door station

In stock
SKU: 715082
€3,984.39
Into a basketIn the basketGo

Overview

TCS IP video outdoor station carus ARGOS CAE3003-IP-0150, silver, Manufacturer: TCS TürControlSysteme AG, Production: Made in Germany, Item number: CAE3003-IP-0150, IMAGE / VIDEO FEATURES, Camera: 1.3 megapixel CMOS color sensor, Detection angle: 130 degrees (wide angle), PTZ control: electronic, Frame rate: up to 30 frames per second, Day-night switching: yes, DEVICE FEATURES, IP video outdoor station for video door communication, with SIP telephones and access control, Mounting type: surface-mounted / flush-mounted, Housing material: aluminum, solid, Housing surface: anodized silver, hand-finished, Display type: 5.7 inch color touchscreen, Screen brightness: ambient light controlled, Start screen: customizable, RFID reader: integrated, Code lock: integrated, Database: integrated, for up to 1,000 call destinations, full-duplex high-performance echo cancellation, video resolution: VGA / CIF, Ethernet interface: 10/100 BaseT (RJ45 socket), protocols: SIP, TCP/UDP/IP, http, DNS, NTP, DHCP, ADVANCED FEATURES, audio coding: G.711 / G.729, frequency range: 200 to 16,000 Hz, video compression: H.264 / MJPEG / JPEG, RFID and code lock in combination: possible, configuration: via LCD menu / web interface, assignment of events to actions, events: access control / sabotage contact / SIP, actions: PTZ / snapshot / relay / SIP, trigger input: 2 x (door opener button, feedback contact), relay changer: 2 x (door opener, light), 2-wire interface: on spring-loaded terminal, Registrar server: integrated (peer-to-peer), TECHNICAL DATA, Technology: Ethernet, Supply voltage: 12 V DC (external power supply) /, 2-wire Ethernet terminal (10 watts) / PoE, Power consumption: max. 9.6 W, Wall housing HxWxD mm: 360x192x8 (52), Permissible ambient temperature: -20 to +60 °C, Protection class: IP65, SCOPE OF DELIVERY, Wall housing for surface and flush mounting, mounting kit

Property Value
Installation technology: Network technology
Color: Silver
Mounting type: Flush-mounted
Width: 192 mm
Height: 360 mm
Depth: 8 mm
With information sign: no
With camera: yes
With cover: yes
Protection against vandalism: yes
Modular Construction: no
Material: Aluminium

Characteristics

Installation technologyNetwork technology
HABIP video anodized silver
ManufacturerTCS
HANCAE3003-IP-0150
GTIN4035138041737
Width192 mm
ColorSilver
Height360 mm
With coverYes
Mounting typeFlush-mounted
Depth8 mm
MaterialAluminum
