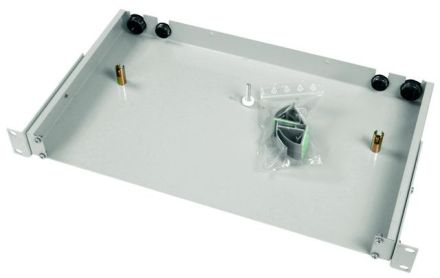

Telegärtner H02030A0293 1HE for 2xPG16 with offset fiber optic panel housing BASIS

In stock
SKU: 638349
€61.02
Into a basketIn the basketGo

Overview

Features: For connecting loose tube cables & TICNET routes, fixed installation, installation set back by 50 mm possible with the included mounting brackets Notes: Closed 19' housing with cover, with holder for a maximum of 4 splice or combination cassettes, with integrated cable entry openings on the left and right for one M20 and one M25 screw connection, with additional strain relief clamps and guides for fiber and cable storage, protection class IP 20 Designation: Housing BASIS V 1 HE, gray RAL 7035 Color: gray RAL 7035 Scope of delivery: Housing with 2 cable entries each for M20 and M25, 2 blind plugs each for M20 and M25

Property Value
Color: gray
With front panel: yes
With housing: yes
With pigtails: no
APC version: no
RAL number: 703
Mounting type: 482.6 mm (19 inch) installation
Number of height units (HE): 1
Height: 132 mm
Width: 482 mm
Depth: 265 mm

Characteristics

Number of height units (HE)1
HAB1HE for 2xPG16 with offset
ManufacturerTelegärtner
HANH02030A0293
GTIN4018359211363
Width482 mm
ColorGray
Height132 mm
Mounting type482.6 mm (19 inch) installation
RAL number703
Depth265 mm
Telegärtner H02030A0293 1HE for 2xPG16 with offset fiber optic panel housing BASIS
Telegärtner H02030A0293 1HE for 2xPG16 with offset fiber optic panel housing BASIS
€61.02
Into a basketIn the basketGo
