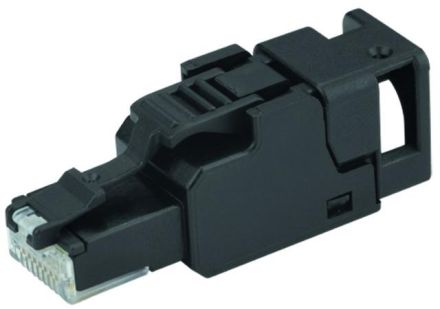

Telegärtner J00026A3001 UFP8 T568B Cat.6A connector field assembly

In stock
SKU: 638393
€12.72
Into a basketIn the basketGo

Overview

Features: pre-assembled protective cap, robust zinc die-cast housing, 360° shielding, fully automatic shielding between the wire pairs, 3-stage cable clamping (cable diameter 5.0 to 9.0 mm), can be assembled in 60 seconds and without special tools, optimized for field use, even under difficult conditions, secure transmission even in the event of external interference, 4-chamber wire manager (available with color coding T568A or T568B and PROFINET), suitable for cabling in office buildings, data centers, industrial plants and home networks, maximum reliability, ideal for repairing and expanding networks, piercing contacts suitable for solid conductors and stranded conductors, pre-assembled protective cap, robust plastic housing, fully automatic shielding between the wire pairs, can be assembled in 60 seconds and without special tools, optimized for field use, even under difficult conditions, 4-chamber wire manager (available with color coding T568A or T568B), suitable for cabling in office buildings, data centers, industrial plants and home networks, maximum reliability, ideal for repairing and expanding networks Notes: AWG 24/1-23/1, AWG 27/7-23/7, with pre-assembled protective cap Short name: UFP8 T568B Cat.6A (ISO/IEC)

Property Value
Shielded: no
Category: 6A (IEC)
Connection type: other
Color: black
AWG range: 27 to 23
Special tool required: yes
Connector type: other
Design: Plug
Suitable for round cables: no
Suitable for flat cables: no
Suitable for stranded conductors: yes
Suitable for Solid conductor: yes

Characteristics

ShieldedNo
Category6A (IEC)
Connector typeOther
HABUFP8 T568B Cat.6A
ManufacturerTelegärtner
HANJ00026A3001
GTIN4018359412661
AWG range27 to 23
Connection typeOther
VersionPlug
ColorBlack
Telegärtner J00026A3001 UFP8 T568B Cat.6A connector field assembly
Telegärtner J00026A3001 UFP8 T568B Cat.6A connector field assembly
€12.72
Into a basketIn the basketGo
