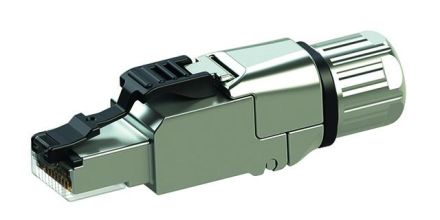

The IP20-protected RJ45 connector MFP8 IE Cat.6A (ISO/IEC) with fully metal cable strain relief for cable diameters up to 10 mm enables time-saving and reliable assembly on site. The 360° shield connection and the full metal housing ensure secure and reliable data transmission even at 10 Gigabit/s Ethernet, even in the event of external electrical interference. And the use of a wide variety of cable types with solid or flexible conductors makes them universally applicable, whether for PROFINET, EtherCAT, EtherNet/IP or CC-Link. Ideal for the assembly of industrial installation and patch cables. Features: pre-assembled protective cap, robust zinc die-cast housing, 360° shielding, fully automatic shielding between the wire pairs, 3-stage cable clamping (cable diameter 5.0 to 9.0 mm), can be assembled in 60 seconds and without special tools, optimized for field use, even under difficult conditions, secure transmission even in the event of external interference, 4-chamber wire manager (available with color coding T568A or T568B and PROFINET), suitable for cabling in office buildings, data centers, industrial plants and home networks, maximum reliability, ideal for repairing and expanding networks, piercing contacts suitable for solid conductors and stranded conductors, pre-assembled protective cap, robust zinc die-cast housing, 360° shielding, fully automatic shielding between the wire pairs, cable outer diameter: 5.5 - 10.0 mm, can be assembled in 60 seconds and without special tools, optimized for field use, even under difficult conditions, secure transmission even in the event of external interference, 4-chamber wire manager (available with color coding T568A or T568B and PROFINET), suitable for cabling in office buildings, data centers, industrial plants and home networks, maximum reliability, ideal for repairing and expanding networks, piercing contacts suitable for solid conductors and stranded conductors
| Property | Value |
| Shielded: | yes |
| Category: | 6A (IEC) |
| Color: | Silver |
| AWG range: | 22 to 27 |
| Special tools required: | no |
| Connector type: | RJ45 8(8) |
| Design: | Plug |
| Suitable for round cables: | yes |
| Suitable for flat cables: | no |
| Suitable for stranded conductors: | yes |
| Suitable for solid conductors: | yes |
