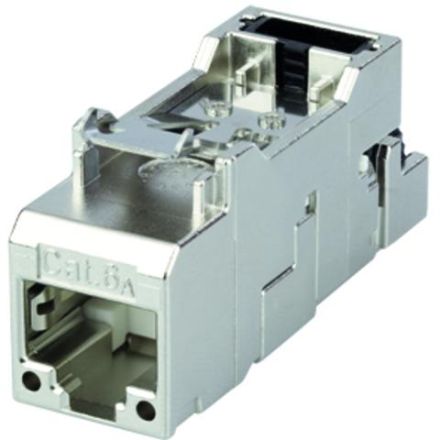

Telegärtner J00029A4000 T568A AMJ-S DD Module Cat6A-ISO

In stock
SKU: 638706
€13.82
Into a basketIn the basketGo

Overview

The new AMJ-S DD (Defined Disconnect) module offers users a simple way to protect expensive and mobile IT equipment with a LAN connection from damage. It disconnects the connection to a connected RJ45 connection cable when a certain tensile force is applied, thus protecting against damage such as contacts being torn out or the RJ45 socket for the network connection being lost. The fully shielded AMJ-S DD module for 10 Gigabit Ethernet is based on the transmission advantages of Telegärtner's connection technology, which has been tried and tested millions of times, and offers cabling professionals unprecedented possibilities for their daily cabling tasks. The outstanding features of the new AMJ-S DD module are its slim design in keystone format (19.3 x 14.7 mm) with a zinc die-cast housing and the proven Telegärtner contact overbending protection. . In combination with the integrated fine-stepped cable clamp and the 360° shield connection, the AMJ-S DD module is a real time saver during installation. The IDC insulation displacement terminal in the new AMJ-S DD module guarantees reliable contact with solid wire and stranded conductors. Another special feature of the AMJ-S DD module is its design capability: The AMJ-S DD module can be easily combined with covers from the switch ranges of all well-known manufacturers. , Performance features:, Cat.6A (ISO/IEC) in accordance with IEC 60603-7-51 , Cat.6A (ISO/IEC) re-embedded tested in accordance with IEC 60512-27-100 , Link certification: Class EA (ISO/IEC) in accordance with ISO/IEC 11801 , 10 Gigabit Ethernet compliant (IEEE 802.3an) , Contact overbending protection: 750 mating cycles with RJ45/RJ11/RJ12 connectors , suitable for PoE+ in accordance with IEEE 802.3at , with design-capable module holder AMJ-S Up/0 flex can be combined with covers from various switch range manufacturers , integrated cable clamp for cable diameters up to 9 mm , Universal, worldwide available installation dimension for mounting cutouts 19.3 x 14.7 mm , Optical monitored testing of RJ45 contact heights, AMJ-S DD: with integrated protection against damage to the contacts through automatic release of the plug connection, Notes: tool-free connection technology, suitable for RJ45/11/12 plugs, with integrated protection against damage to the contacts through automatic release of the plug connection, short name: AMJ-S DD module Cat.6A (ISO/IEC) T568A, installation dimension: Z121

Property Value
Shielded: yes
Category: 6A (IEC)
Color: Silver
AWG range: 22 to 26
Special tools required: no
Connector type: RJ45 8(8)
Design: Socket (Jack)
Suitable for round cables: no
Suitable for flat cables: no
Suitable for stranded conductors: yes
Suitable for solid conductors: yes

Characteristics

ShieldedYes
Category6A (IEC)
Connector typeRJ45 8(8)
HABT568A
ManufacturerTelegärtner
HANJ00029A4000
GTIN4018359492540
AWG range22 to 26
VersionJack
ColorSilver
