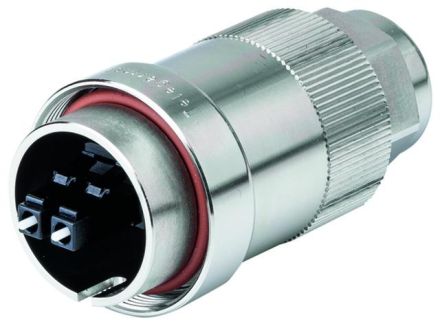

TOC stands for Telecommunications Outdoor Connectors and offers cabling professionals the reliability and flexibility they want for their network connection in the harshest applications. Whether in telecommunications, security applications or automation, but also in applications in the military, offshore or mining sectors, the handy and easy-to-install TOC connectors are used. Conformity with the requirements of protection class IP68 and the excellent material properties enable use in the harshest environmental conditions, and this in a temperature range of -40°C to 85°C. The TOC connectors are locked, strain relieved and sealed via a rotary movement and do not require any further work steps. For you this means: simple, quick and error-free installation, high transmission reliability and flexibility in cabling. The TOC series in LC Duplex impresses with its easy handling and flexibility in installation. Pre-assembled cables can be inserted into the TOC connector housing or the LC connectors can be assembled on site. The included holding frame with extended locking lever holds the LC connectors firmly and offers additional tool-free strain relief. With the extended locking lever, the LC connectors in connections with SFP+ transceivers or LC duplex couplings can be easily plugged and unplugged even in confined spaces. In addition, the different installation positions of the SFP+ transceivers can be compensated in all axes. The TOC connector housing is designed for cable diameters up to 9.5 mm (including PE cables). For extensions, the TOC coupling with built-in LC duplex feedthrough coupling can be integrated into the cabling structure. , Performance features:, Single cable diameter: 2.0 mm , Cable outer diameter: 4 - 9.5 mm , LC holding frame with extended locking lever and strain relief , Protection class IP68 according to IEC 60529 , Singlemode/Multimode (PC) & Singlemode (APC) versions , Plug & coupling according to IEC 61754-20 (zirconia ceramic) , Temperature range: -40° to +85°C , Notes: Brass, nickel-plated, Designation: TOC connector set IP68, Fiber type: G50/125, Housing color: blue, Description: LC Duplex Multimode
| Property | Value |
| Shielded: | yes |
| Connection type: | Crimp |
| Color: | blue |
| Special tool required: | yes |
| Connector type: | other |
| Design: | Plug |
| Suitable for round cables: | no |
| Suitable for flat cables: | no |
| Suitable for stranded conductors: | yes |
| Suitable for Solid conductor: | yes |
