Televes 236165 OSMD30SCAPC optical 30m 4x plug underground cable

In stock

SKU: 919482

Price on request

€121.22

€0

Overview

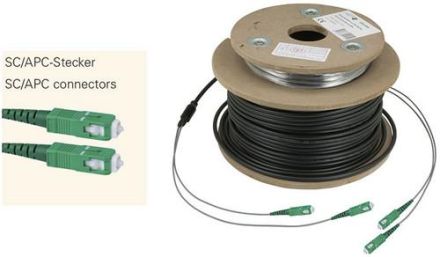

Optical single-mode fiber optic cable 2 cores with SC/APC connectors pre-assembled for connecting units in an optical SAT IF installation. The cable has a PE jacket and is therefore suitable for outdoor use and for underground installation. , cable diameter 5.9mm

Property	Value
Outer diameter approx.:	5.5 mm
Sheath color:	black
Fiber type:	Singlemode 9/125
Core type:	Full-loader
Number of fibers per core:	1
With strain relief:	no
With Rodent protection:	yes
Reinforcement:	no
Sheath material:	Polyvinyl chloride (PVC)
Cable metal-free:	yes
Flame-retardant:	no
Low smoke according to EN 61034-2:	no
Chemically resistant:	no
Blow-in:	no
Number of fibers:	2
Halogen-free according to EN 60754-1/2:	yes
Oil-resistant according to EN 60811-404:	no
Category:	OS2
Specification of jacket material:	other
Cable longitudinally watertight:	yes
Cable transversely watertight:	yes
UV-resistant:	yes
Min. permissible bending radius, stationary use/permanently installed:	27.5 mm
Laying in the ground:	no
