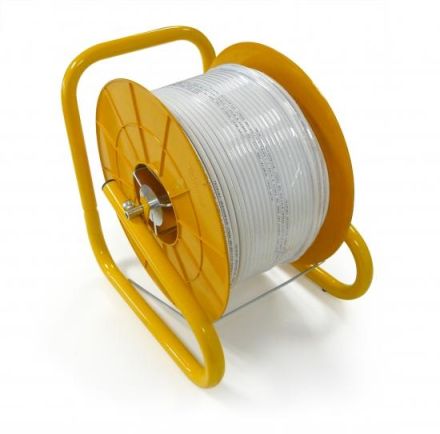

Televes KBSK2000N 100m SK2000plus cable reel package

In stock

SKU: 537253

Price on request

€161.82

€0

Overview

Easy to transport, low weight, spring-loaded brake bracket, twist-free unwinding, compatible with all Televes 100/250 m plastic spools.

Property	Value
Sheath color:	white
Outer diameter approx.:	6.7 mm
Dielectric:	Polyethylene, foamed (Foam PE)
Outer conductor shape:	Foil + braid
Characteristic impedance:	75 Ohm
Inner conductor diameter:	1.02 mm
UV-resistant:	no
Sheath material:	Polyvinyl chloride (PVC)
Outer conductor diameter:	4.6 mm
Inner conductor material:	Copper
Inner conductor class:	Class 1 = single-wire
Outer conductor material:	Copper
Reinforcement:	no
Permissible external cable temperature during assembly/handling:	-5 to 60 °C
Permissible Cable external temperature after installation without vibration:	-15 to 65 °C
Halogen-free according to EN 60754-1/2:	no
Inner conductor surface:	bare
Outer conductor surface:	tinned
Number of shielding layers:	3
Specification of sheath material:	other
Fire behavior class according to EN 13501-6:	Eca
Smoke development class according to EN 13501-6:	without
Drip behaviour class according to EN 13501-6:	without
Acid development class according to EN 13501-6:	without
Min. permissible bending radius, stationary use/permanently installed:	33 mm
Laying in the ground:	no
