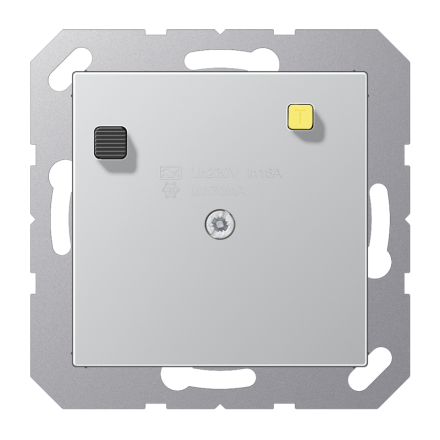

Residual current circuit breaker (RCD) 30 mA, Series A, aluminum Material: painted thermoplastic in accordance with DIN EN 61008-1 (VDE 0664-10) and DIN EN 61008-2-1 (VDE 0664-11) Rated residual current: 30 mA with spring terminals for rigid conductors up to 2.5 mm2 not suitable for installation in surface-mounted caps To be connected to 2- or 3-core supply lines. Installation in a 60 mm flush-mounted box (deep box recommended). Fixed protective device with voltage-independent function. The sockets connected to the output terminals are protected in accordance with DIN VDE 0100-410. However, the electrical installation up to the residual current device is not protected!
