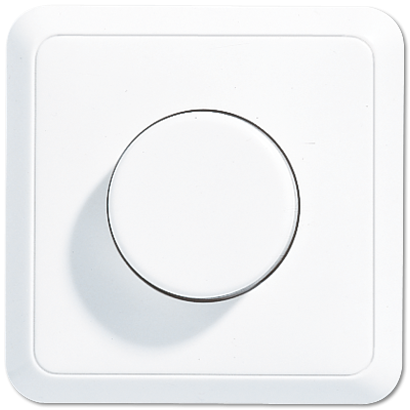

Jung CD5544.03VWW rotary dimmer LED with rotary off switch, with frame, CD series, alpine white

In stock
SKU: 404683
€26.48
Into a basketIn the basketGo

Overview

Rotary dimmer LED with rotary off switch, with frame, CD series, alpine white, complete with cover and integrated frame
without extension input
Only to be installed as a single device, not suitable for combinations!

Intended use
Switching and dimming of incandescent lamps, HV halogen lamps and phase-cut dimmable HV LED lamps
Operation with suitable cover
Installation in device box with dimensions according to DIN 49073

Product features
Dimming principle phase-cut
Short-circuit protection by means of a fine-wire fuse
Nominal voltage: AC 230 V ~
Mains frequency: 50 Hz
Standby power: approx. 0.2 W
Power loss: approx. 3.7 W
Ambient temperature: 5 ... +45 °C
Connected load at 25 °C
Incandescent lamps: 20 ... 200 W
HV halogen lamps: 20 ... 200 W
HV LED lamps dimmable: typically 3 ... 40 W
Ohmic and HV LED: typically 3 ... 40 W
Power reduction
for surface mounting: 5%
per 5 °C exceeding 25 °C: 10%
for installation in wooden or drywall walls: 15%
Fine-wire fuse: T 800 mA H 250
Connection type: screw terminals
single-wire: 1 x 0.5 ... 2.5 mm2
fine-wire without wire end ferrule: 1 x 0.5 ... 2.5 mm2
fine-wire with wire end ferrule: 1 x 0.5 ... 2.5 mm2
Changeover switching: not possible

Property Value
Device height: 81 mm
Device width: 81 mm
Connection type: Screw terminal
Wire cross section: 0.5 to 2.5 mm²
Mounting type: Flush-mounted
Dimming phase control: yes
Dimming phase control: no
Nominal voltage: 230 V
Color: white
Operating method: Rotary knob
Halogen-free: yes
Composition: Base element with full cover plate
Load type: other
Extension input: no
Light value memory: no
Can be used with button: no
Can be used with motion detector: no
Can be used with presence detector: no
Can be used with timer: no
Can be used with radio button: no
Can be used with IR button: no
Mounting type: Claw fastening
Material: Plastic
Material quality: Duroplast
Surface finish: glossy
RAL number (similar): 9016
Frequency: 50.0 Hz
Transparent: no
App control via Bluetooth: no

Characteristics

Core cross-section0.5 to 2.5 mm²
ManufacturerJung
HANCD5544.03VWW
GTIN4011377167087
Connection typeScrew terminal
Surface finishGlittering
Operating moderotary knob
Mounting typeClaw attachment
Dimming trailing edgeNo
Dimming phase controlYes
ColorWhite
Frequency50.0Hz
Device width81 mm
Device height81 mm
Halogen freeYes
Mounting typeFlush-mounted
Extension inputNo
Nominal voltage230V
RAL number (similar)9016
TransparentNo
MaterialPlastic
Material qualityDuroplast
CompilationBase element with full cover plate
