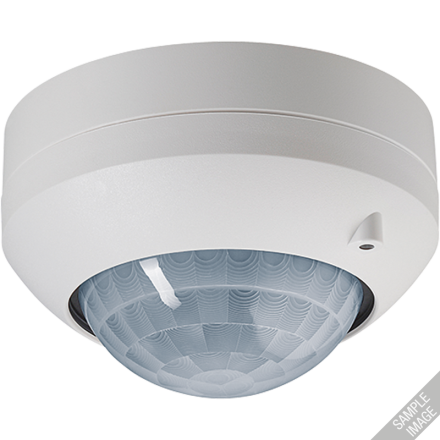

Jung DWPMK360AL ceiling monitor / presence detector, aluminum (painted)

In stock
SKU: 182536
€158.33
Into a basketIn the basketGo

Overview

Ceiling monitor / presence detector, aluminum (painted) with integrated power unit
including IR remote control Item no.: DWPM FB IR K
Intended use
Automatic switching of lighting, depending on heat movement and ambient brightness
Ceiling mounting, surface-mounted in dry indoor areas

Product features
2-point light control
Functions adjustable with IR remote control
Restriction of the detection field by switching off individual sensors or clip-on cover
Operation with IR remote control, 2-wire extension or installation button
Teach function for adjusting the brightness threshold, in combination with IR remote control
Switch-off warning
Short-term operation e.g. for controlling acoustic signaling devices
Display LEDs
Presence simulation
Function as Twilight switch
Dynamic follow-up time
Extension of the detection area by connecting several devices in parallel
Nominal voltage: AC 110 ... 230 V ~
Mains frequency: 50/60 Hz
Ambient temperature: 5 ... +45 °C
Standby power: max. 0.3 W
Circuit breaker: max. 16 A
Contact type: µ
Detection angle: 360°
Dimensions (Ø x H): 103 x 66 mm
Installation height: 3.00 m
Detection range: Ø approx. 20 m
Sensitivity: 25 ... 100 %
Brightness setting: approx. 5 ... 2,000 lx (and daytime operation)
Follow-up time: approx. 10 s ... 30 min
Short-term operation
Pulse duration: approx. 0.5 s
Pulse pause: approx. 3 s
Switching current at 35 °C
Ohmic: 16 A (AC1)
Fluorescent lamps: 4 AX
Connected load at AC 230 V ~ and 35 °C
Incandescent lamps: 2300 W
HV halogen lamps: 2000 W
Electronic transformers: 1500 W
Inductive transformers: 1000 VA
HV LED lamps: typically 400 W
Fluorescent lamps uncompensated: 920 VA
Capacitive load: 690 VA (560 µF)
Connected load at AC 110 V ~ and 35 °C
Incandescent lamps: 1150 W
HV halogen lamps: 1000 W
Electronic transformers: 750 W
Inductive transformers: 500 VA
HV LED lamps: typically 200 W
Compact fluorescent lamps: typically 200 W
Fluorescent lamps uncompensated: 460 VA
Capacitive load: 345 VA (560 µF)
Connection
single-wire: 1 x 1 ... 2.5 mm2
fine-wire with tinned conductor ends: 1 x 0.75 ... 1.5 mm2
Number of extensions
unlit installation buttons: unlimited
2-wire extension: unlimited
Total length of extension cable: max. 100 m
Total length of load cable: max. 100 m
IR remote control
Battery type: 1 x Lithium CR 2025 (included)

Property Value
Design: Presence detector
Color: Aluminum
Nominal voltage: 230 V
Material: Plastic
Mounting type: Surface-mounted
Max. Switching capacity: 2300 W
Voltage type: AC
Max. Range to one side: 10 m
Creep-under protection/rear field monitoring: no
Response brightness adjustable: yes
Response sensitivity adjustable: yes
Sensor type: other
Optimal mounting height: 3 m
Material quality: other
Horizontal detection angle: 0.0 to 360.0 °
Frequency: 50.0 to 60.0 Hz
Halogen-free: yes
Constant light control: no
HVAC control: no
Animal corridor: no
Networkable: yes
Staircase monitoring: no
Suitable for wireless transmission: no
Teach function for response brightness: yes
Dimming function with dimming insert: no
Transparent: no
Suitable for C load: yes
With DALI interface: no
Extension input: yes

Characteristics

HABDWPM K 360 AL
ManufacturerJung
HANDWPMK360AL
GTIN4011377146587
Dimming function with dimming insertNo
Response sensitivity adjustableYes
Response brightness adjustableYes
VersionPresence detector
Detection angle horizontal0.0 to 360.0 °
Frequency50.0 to 60.0 Hz
Suitable for C-loadYes
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Constant light controlNo
Max. range to one side10m
Max. switching capacity2300W
With DALI interfaceNo
Mounting typeSurface-mounted
Extension inputYes
Nominal voltage230V
Optimal mounting height3m
Sensor typeOther
Voltage typeAC
Teach function for response brightnessYes
Animal corridorNo
TransparentNo
Staircase monitoringNo
Creep protection/rear field monitoringNo
NetworkableYes
MaterialPlastic
Material qualityOther
