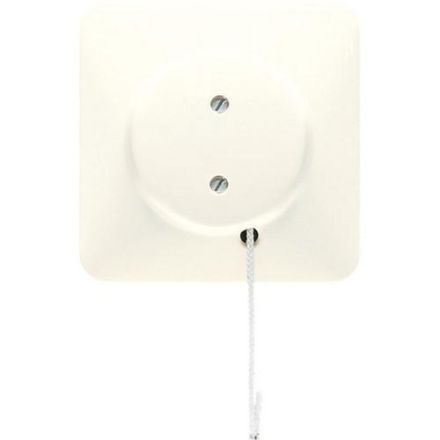

Jung Z506NUZV pull-to-change switch, CD series, white

In stock

SKU: 138863

Price on request

€17.77

€0

Overview

Pull-toggle switch, CD series, white for wall and ceiling mounting
with screw terminals for rigid and flexible conductors up to 2.5 mm2
Connection terminals in accordance with DIN VDE 0632 (EN 60669)
Pull cord approx. 50 mm long
Pull switch 10 AX / 250 V ~ for wall mounting can be implemented with the following items: button 531 U, pull insert 34 and cover CD 590 KO.. or button 531 U, pull insert 34 KO 5 and cover CD 590 KO5..

Property	Value
Color:	white
Circuit type:	Toggle switch
Operating method:	Pull cord
Installation method:	Flush-mounted
Composition:	Base element with full cover plate
Fastening method:	Claw/screw fastening
Material:	Plastic
Material quality:	Duroplast
Halogen-free:	yes
Surface finish:	glossy
RAL number (similar):	1013
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Lighting:	no
Installation depth:	29 mm
Device width:	67 mm
Device height:	67 mm
With mounting plate:	no
Text field/labeling area:	no
