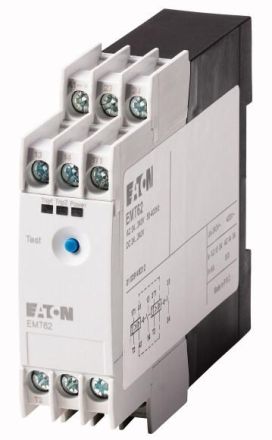

Eaton EMT62 24-240V AC/DC motor protection relay, 171889

In stock

SKU: 478603

Price on request

€145.35

€0

Overview

Thermistor machine protection relay, mains and fault LED display, rated control supply voltage 24-240V 50-400Hz, 24-240V DC, without restart lock, snap-on mounting, with 2 sensor circuits

Property	Value
Number of contacts as normally open:	2
Design of the electrical connection:	Screw connection
Type of voltage for actuation:	AC/DC
Width:	23 mm
Height:	83 mm
Depth:	103 mm
With removable terminals:	no
Number of measuring circuits:	2
Error storage possible:	no
External reset possible:	no
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Resistance measuring range:	750 to 12000 Ohm
