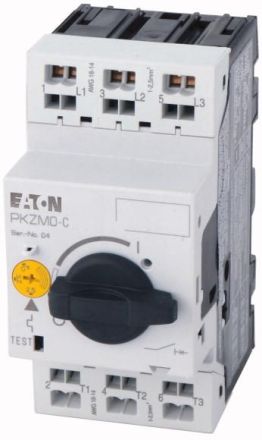

Eaton PKZM0-0,25-C MOTOR PROTECTION BREAKER SPRING TERMINAL 0,16-0,25 , 229670

Eaton PKZM0-0,25-C MOTOR PROTECTION BREAKER SPRING TERMINAL 0,16-0,25 , 229670

In stock

SKU: 224842

Price on request

€75.47

€0

Overview

Motor protection switch according to IEC/EN60947, 3-pole, size PKZM0, with adjustable overload and instantaneous short-circuit release, sensitive to phase failure, screw and snap-on mounting, with spring-loaded terminals, cap installation dimension 45mm, rated operating voltage Ue 690V, protection class IP20, finger-safe according to 0106 T. 100, available accessories: auxiliary switch, voltage release, switching drive, clip plate

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 400 V:	0.06 kW
Rated continuous current Iu:	0.25 A
Rated short-circuit breaking current Icu at 400 V, AC:	150 kA
Overload release current setting:	0.16 to 0.25 A
Tripping technology:	thermomagnetic
Phase failure sensitive:	yes
Main circuit connection type:	Spring-loaded connection
Device design:	Built-in device, fixed installation technology
Protection class (IP):	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	3.9 A
With integrated auxiliary switch:	no
With integrated undervoltage release:	no
Height:	93 mm
Depth:	76 mm
Type of operating element:	Rotary knob
With thermal protection:	no
