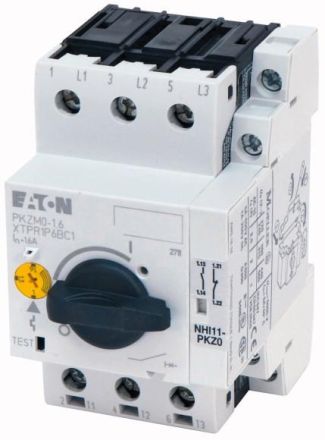

HABPKZM0-1,6/NHI11-GVP
Minimal order32 Pieces
HAN39438
GTIN4015080394389
Connection type main circuitScrew connection
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V0.25kW
Rated operational power at AC-3, 400 V0.55kW
Rated operating voltage690V
Rated continuous current Iu1.6A
Rated ultimate short-circuit breaking current Icu at 400 V, AC150kA
Width54 mm
Setting range of the instantaneous short-circuit release25A
Device typeBuilt-in device Fixed installation technology
Height93 mm
With integrated auxiliary switchYes
With integrated undervoltage releaseNo
With thermal protectionYes
Sensitive to phase failureYes
Number of poles3
Depth76 mm
Overload release current setting1.6A
