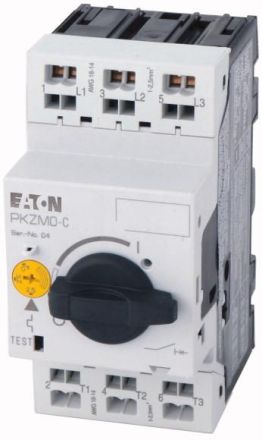

HABPKZM0-10-C
HAN229678
GTIN4015082296780
Connection type main circuitSpring-loaded connection
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V2.2kW
Rated operational power at AC-3, 400 V4kW
Rated operating voltage690V
Rated continuous current Iu10A
Rated ultimate short-circuit breaking current Icu at 400 V, AC150kA
Width45 mm
Setting range of the instantaneous short-circuit release155 A
Device typeBuilt-in device Fixed installation technology
Height93 mm
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
With thermal protectionNo
Sensitive to phase failureYes
Number of poles3
IP protection)IP20
Depth76 mm
Overload release current setting6.3 to 10A
