Eaton PKZM0-10-GVP2 PKZM0-10-GVP2 , 202744

In stock
SKU: 224897
€97.22
Into a basketIn the basketGo

Overview

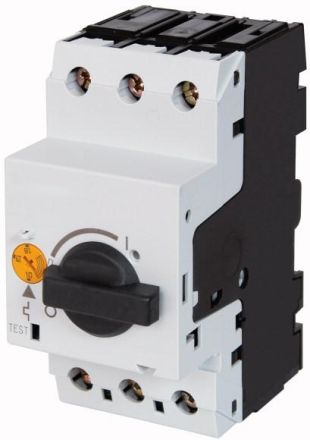

Motor protection switch, 3-pole, Ir = 6.3 - 10 A, screw connection, bulk pack

Eaton Type: PKZM0-10-GVP2
Eaton Article No.: 202744

PropertyValue
Number of poles:3
Rated operating voltage:690 V
Rated operating power at AC-3, 230 V:2.2 kW
Overload release current setting:10 A
Rated operating power at AC-3, 400 V:4 kW
Rated continuous current Iu:10 A
Tripping technology:thermomagnetic
Phase failure sensitive:yes
Connection type Main circuit:Screw connection
Device design:Built-in device, fixed installation technology
Setting range of the instantaneous short-circuit release:155 A
Rated short-circuit breaking current Icu at 400 V, AC:150 kA
With integrated auxiliary switch:no
With integrated undervoltage release:no
Protection class (IP) :IP20
Width:45 mm
Height:93 mm
Depth:76 mm
Design of the operating element:Rotary knob
With thermal protection:yes

Characteristics

HABPKZM0-10-GVP2
Minimal order27 Pieces
ManufacturerEaton
HAN202744
GTIN4015082027445
Connection type main circuitScrew connection
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V2.2kW
Rated operational power at AC-3, 400 V4kW
Rated operating voltage690V
Rated continuous current Iu10A
Rated ultimate short-circuit breaking current Icu at 400 V, AC150kA
Width45 mm
Setting range of the instantaneous short-circuit release155 A
Device typeBuilt-in device Fixed installation technology
Height93 mm
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
With thermal protectionYes
Sensitive to phase failureYes
Number of poles3
Depth76 mm
Overload release current setting10A
