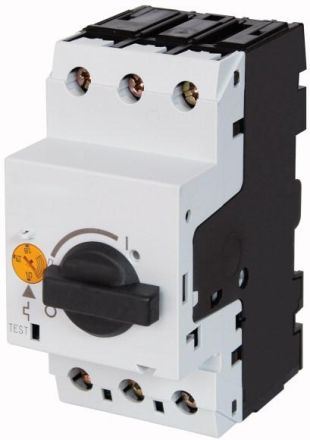

HABPKZM0-16-GVP
Minimal order38 Pieces
HAN200524
GTIN4015082005245
Connection type main circuitScrew connection
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V4kW
Rated operational power at AC-3, 400 V7.5kW
Rated operating voltage690V
Rated continuous current Iu16A
Rated ultimate short-circuit breaking current Icu at 400 V, AC50kA
Width45 mm
Setting range of the instantaneous short-circuit release248 A
Device typeBuilt-in device Fixed installation technology
Height93 mm
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
With thermal protectionYes
Sensitive to phase failureYes
Number of poles3
Depth76 mm
Overload release current setting16A
