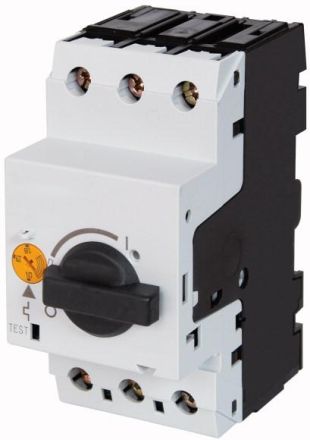

HABPKZM0-2,5-GVP2
Minimal order27 Pieces
HAN202746
GTIN4015082027469
Connection type main circuitScrew connection
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V0.37kW
Rated operational power at AC-3, 400 V0.75kW
Rated operating voltage690V
Rated continuous current Iu2.5A
Rated ultimate short-circuit breaking current Icu at 400 V, AC150kA
Width45 mm
Setting range of the instantaneous short-circuit release39 A
Device typeBuilt-in device Fixed installation technology
Height93 mm
With integrated auxiliary switchNo
With integrated undervoltage releaseNo
With thermal protectionYes
Sensitive to phase failureYes
Number of poles3
Depth76 mm
Overload release current setting2.5A
