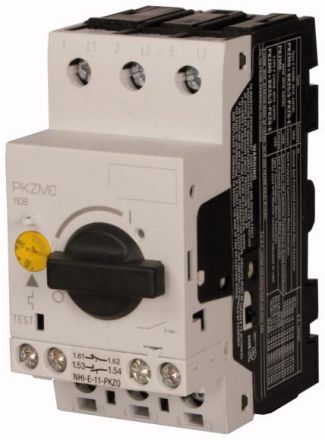

HABPKZM0-20/NHI-E-11-GVP2
Minimal order24 Pieces
HAN88848
GTIN4015080888482
Connection type main circuitScrew connection
Design of the actuating elementRotary knob
Triggering technologyThermomagnetic
Rated operating power at AC-3, 230 V5.5kW
Rated operational power at AC-3, 400 V9kW
Rated operating voltage690V
Rated continuous current Iu20A
Rated ultimate short-circuit breaking current Icu at 400 V, AC50kA
Width45 mm
Setting range of the instantaneous short-circuit release310A
Device typeBuilt-in device Fixed installation technology
Height93 mm
With integrated auxiliary switchYes
With integrated undervoltage releaseNo
With thermal protectionYes
Sensitive to phase failureYes
Number of poles3
Depth76 mm
Overload release current setting20A
