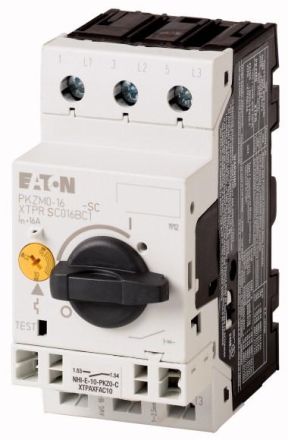

Eaton PKZM0-6,3-SC/NHI-E-10-C-GVP , 257060

In stock

SKU: 224999

Price on request

€107.74

€0

Overview

Motor protection switch, 3-pole + 1 normally open contact, Ir = 4 - 6.3 A, screw/spring-loaded connection, bulk pack

Eaton Type: PKZM0-6.3-SC/NHI-E-10-C-GVP
Eaton Article No.: 257060

Property	Value
Number of poles:	3
Rated operating voltage:	690 V
Rated operating power at AC-3, 230 V:	1.1 kW
Rated operating power at AC-3, 400 V:	2.2 kW
Rated continuous current Iu:	6.3 A
Rated ultimate short-circuit breaking current Icu at 400 V, AC:	150 kA
Overload release current setting:	6.3 A
Triggering technology:	thermomagnetic
Phase failure sensitive:	yes
Connection type main circuit:	spring-loaded connection
Device design:	Built-in device, fixed installation technology
Protection class (IP) :	IP20
Width:	45 mm
Setting range of the instantaneous short-circuit release:	98 A
With integrated auxiliary switch:	yes
With integrated undervoltage release:	no
Height:	93 mm
Depth:	76 mm
Design of the operating element:	Rotary knob
With thermal protection:	yes
