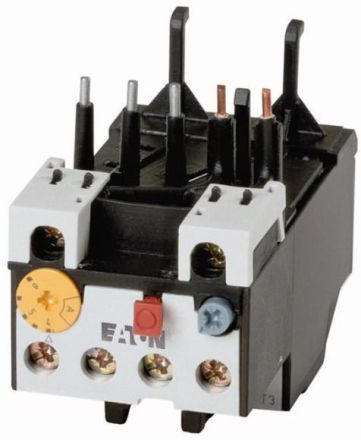

Eaton ZB12-6 motor protection relay, 278439

In stock
SKU: 473764
€40.40
Into a basketIn the basketGo

Overview

Motor protection relay, Product range: Bimetal relay ZB up to 150 A, Accessories: Motor protection relay, Size: ZB12, Phase failure sensitivity: IEC/EN 60947,0660 Part 102, Description: Test/off button, reset button manual/auto, trip-free, Mounting type: Direct mounting, Auxiliary switch N/O = normally open: 1 N/O, Auxiliary switch N/C = normally closed: 1 N/C, Can be used for: DILM7, DILM9, DILM12, DILM15, DIULM7, DIULM9, DIULM12, SDAINLM12, SDAINLM16, SDAINLM22, DS7-34.SX005., Standards and regulations: IEC/EN 60947,0660, UL, CSA, Protection class: IP20

PropertyValue
Connection type main circuit:Screw connection
Number of auxiliary contacts as normally closed:1
Number of auxiliary contacts as normally open:1
Adjustable current range:4 to 6 A
Mounting type:Direct mounting
Trip class:CLASS 10 A
Max. Rated operating voltage Ue:690 V
Reset function input:no
Reset function automatic:yes
Reset function button:yes

Characteristics

Adjustable current range4 to 6 A
Automatic reset functionYes
Input reset functionNo
Button reset functionYes
HABZB12-6
ManufacturerEaton
HAN278439
GTIN4015082784393
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open1
Number of auxiliary contacts as normally closed1
Trigger classCLASS 10 A
Max. rated operating voltage Ue690V
Mounting typeDirect cultivation
