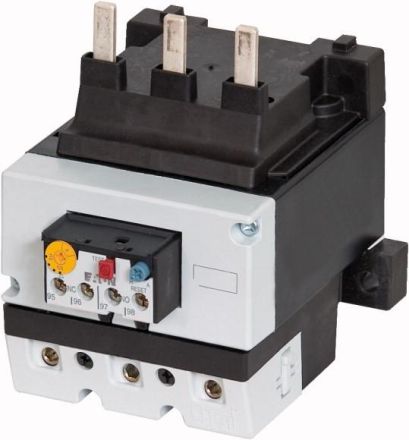

Motor protection relay, Product range: Bimetal relay ZB up to 150 A, Accessories: Motor protection relay, Size: ZB150, Phase failure sensitivity: IEC/EN 60947,0660 Part 102, Description: Test/Off button, Reset button manual/auto, Trip-free, Mounting type: Direct mounting, Auxiliary switch N/O = Normally open: 1 N/O, Auxiliary switch N/C = Normally closed: 1 N/C, Can be used for: DILM80, DILM95, DILM115, DILM150, DILM170, DILMF80, DILMF95, DILMF115, DILMF150, DIULM80, DIULM95, DIULM115, DIULM150, SDAINLM140, SDAINLM165, SDAINLM200, SDAINLM260, Standards and regulations: IEC/EN 60947,0660, UL, CSA, protection class: IP00
| Property | Value |
| Connection type main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed: | 1 |
| Number of auxiliary contacts as normally open: | 1 |
| Adjustable current range: | 145 to 175 A |
| Mounting type: | Direct mounting |
| Trip class: | CLASS 10 A |
| Max. Rated operating voltage Ue: | 1000 V |
| Reset function input: | no |
| Reset function automatic: | yes |
| Reset function button: | yes |
