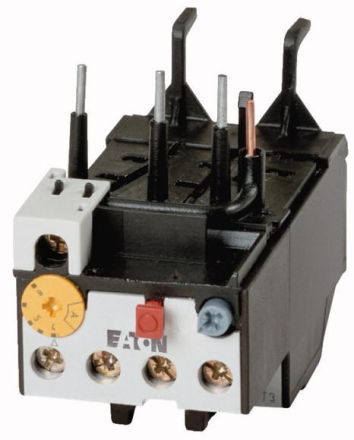

Motor protection relay, product range: Bimetal relay ZB up to 150 A, accessories: Motor protection relay, size: ZB32, phase failure sensitivity: IEC/EN 60947,0660 part 102, description: test/off button, reset button manual/auto, trip-free, mounting type: direct mounting, auxiliary switch N/O = normally open: 1 N/O, auxiliary switch N/C = normally closed: 1 N/C, can be used for: DILM17, DILM25, DILM32, DILM38, DILMF8, DILMF11, DILMF14, DILMF17, DILMF25, DILMF32, DIULM17, DIULM25, DIULM32, SDAINLM30, SDAINLM45, SDAINLM55, DS7-34...SX032..., standards and regulations: IEC/EN 60947,0660, UL, CSA, protection class: IP20
| Property | Value |
| Connection type main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed: | 1 |
| Number of auxiliary contacts as normally open: | 1 |
| Adjustable current range: | 24 to 32 A |
| Mounting type: | Direct mounting |
| Trip class: | CLASS 10 A |
| Max. Rated operating voltage Ue: | 690 V |
| Reset function input: | no |
| Reset function automatic: | yes |
| Reset function button: | yes |
