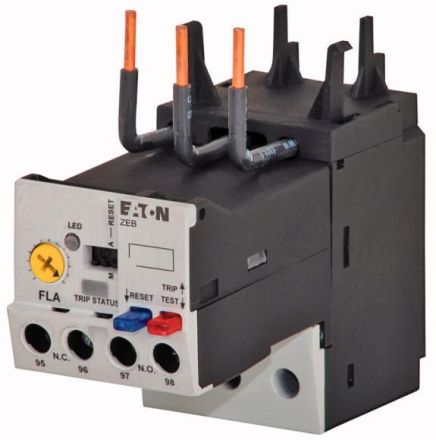

Motor protection relay, Product range: Electronic motor protection relays ZEB, Phase failure sensitivity: IEC/EN 60947,0660 Part 102, Description: Test/Off button, Reset button, Manual/Auto reset selectable, Protection against heavy starting (Class 10A to Class 30), Mounting type: Direct mounting, Auxiliary switch N/O = Normally open: 1 N/O, Auxiliary switch N/C = Normally closed: 1 N/C, Can be used for: DILM7, DILM9, DILM12, DILM15, DIULM7, DIULM9, DIULM12, SDAINLM12, SDAINLM16, SDAINLM22, Standards and regulations: IEC/EN 60947,0660, UL, CSA, Degree of protection: IP20
| Property | Value |
| Connection type main circuit: | Screw connection |
| Number of auxiliary contacts as normally closed: | 1 |
| Number of auxiliary contacts as normally open: | 1 |
| Trigger class: | adjustable |
| Adjustable current range: | 1 to 5 A |
| Voltage type for actuation: | self-supplied |
| Mounting type: | Direct mounting |
| Automatic reset function: | yes |
| Input reset function: | no |
| Reset function button: | yes |
