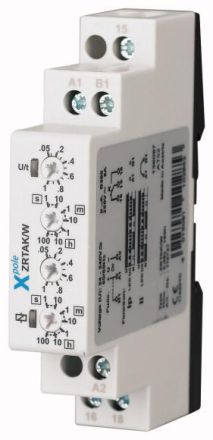

Eaton ZRTAK/W time relay, clock generator, 1W, 110747

In stock

SKU: 219181

Price on request

€85.65

€0

Overview

Time relay single function, clock generator (2 times adjustable), 2 functions, 7 time end ranges, functions: lp clocking pause beginning, li clocking pulse beginning (with bridge A1-B1)

Property	Value
Number of outputs, delayed, changeover:	1
Design of the electrical connection:	screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Type of voltage for actuation:	AC/DC
Time range:	0.05 to 360000 s
Rated control supply voltage Us at AC 50 Hz:	24 to 240 V
Rated control supply voltage Us at AC 60 Hz:	24 to 240 V
Rated control supply voltage Us at DC:	24 to 240 V
Width:	17.5 mm
Depth:	65 mm
Height:	87 mm
With plug-in base:	no
Remote control possible:	no
Suitable as remote control:	no
On-delay function:	no
Off-delay function:	no
Function with flickering when on:	no
Function with flickering when off:	no
Function star/delta:	no
Function pulse forming:	no
Function flashing starting with pause, fixed time:	no
Function flashing starting with pulse, fixed time:	no
Function clocking starting with pause, variable:	yes
Function clocking starting with pulse, variable:	yes
With semiconductor output:	no
Rated current:	8 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	yes
