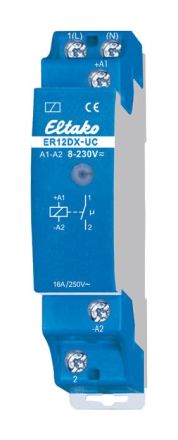

1 normally open contact potential-free 16A/250V AC, 230V LED lamps up to 600W, incandescent lamps 2000W. No standby loss. Modular device for mounting on DIN-EN 60715 TH35 mounting rail. 1 division unit = 18mm wide, 58mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. With the patented Eltako Duplex technology (DX), the normally potential-free contacts can still switch at zero crossing when switching 230 V AC 50 Hz, thus drastically reducing wear. To do this, simply connect the N conductor to terminal (N) and L to 1 (L). This results in a standby loss of just 0.1 watt. If the contact is used to control switching devices that do not switch at zero crossing, (N) should not be connected, as the additional closing delay otherwise has the opposite effect. Universal control voltage 8..230V UC. Very low switching noise. Control display with LED. The connection terminal assignment is identical to the electromechanical switching relay R12-100-. By using a bistable relay, there is no coil power loss and no heating as a result, even when switched on. The relay contact can be open or closed when commissioned and synchronizes when first activated. This relay is not suitable for feedback with the switching voltage of a dimmer switch. Only use the relays ESR12DDX-UC, ESR12NP-230V+UC or ESR61NP-230V+UC for this. The electronics do not have their own power supply and therefore no standby loss. The microcontroller is only activated when the control contact is closed, which switches the bistable relay in the correct direction. When the control contact opens or the control voltage drops, the device switches back.
