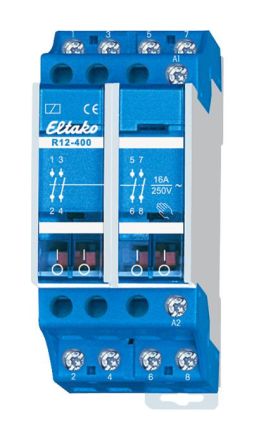

Eltako 22400030 installation relay R12-400-230V

In stock

SKU: 187669

Price on request

€37.43

€0

Overview

4-pole 16A/250V AC. Modular devices for mounting on DIN-EN 60715 TH35 mounting rail with manual operation and switch position indicator. 2 division units = 36mm wide, 55mm deep. Duty cycle 100%. Control power requirement 4W. Contacts 4 make contacts. Contact spacing 3mm. Test voltage contact/contact 2000V and test voltage control connections/contact 4000V.

Property	Value
Mounting type:	DIN rail
Rated current:	16 A
Control voltage type 1:	AC
Control voltage 1:	230 V
Max. fluorescent lamp load:	2300 VA
Max. Switching current (cos phi = 0.6):	10 A
Installation depth:	55 mm
Function:	other
Width in modular spaces:	2
Max. incandescent lamp load:	2300 W
Max. fluorescent lamp load (parallel compensated):	500 VA
Max. Fluorescent lamp load (duo circuit):	2300 VA
Frequency of control voltage 1:	50 Hz
Type of supply voltage:	AC
Number of contacts as normally open:	4
