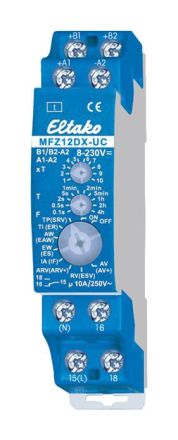

1 changeover contact potential-free 10A/250V AC, 230V LED lamps up to 200W, incandescent lamps 2000W*. Stand-by loss only 0.02-0.6 watts. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. With the patented Eltako Duplex technology (DX), the normally potential-free contacts can still switch at zero crossing when switching 230V AC 50Hz, thus drastically reducing wear. To do this, simply connect the N conductor to terminal (N) and L to 15(L). This results in an additional stand-by loss of only 0.1 watts. Universal control voltage 8..230V UC. Supply voltage same as the control voltage. Times between 0.1 seconds and 40 hours can be set. By using a bistable relay, there is no coil power loss and no heating as a result, even when switched on. After installation, wait for the short automatic synchronization before connecting the switched consumer to the mains. Depending on whether the power supply is connected to terminals B1-A2 or B2-A2, two different function levels can be selected. Functions F when the power supply is connected to B1-A2 (standby loss 0.02-0.4W): RV = release delay. AV = response delay. TI = clock generator starting with pulse. TP = clock generator starting with pause. IA = pulse-controlled response delay (e.g. automatic door opener). EW = pulse-on switch. AW = pulse-off switch. ARV = response and release delay. ON = permanently ON. OFF = permanently OFF. Functions (F) when the power supply is connected to B2-A2 (standby loss 0.02-0.6W): SRV = impulse switch with release delay. ER = relay. EAW = on and off pulse switch. ES = impulse switch. IF = pulse former. ARV+ = additive response and release delay. ESV = impulse switch with release delay and switch-off warning. AV+ = additive response delay. ON = permanently ON. OFF = permanently OFF. The LED under the large rotary switch provides information about the contact position during the time period. It flashes as long as the working contact 15-18 is open (15-16 closed) and lights up constantly as long as the working contact 15-18 is closed (15-16 open). The time base T is set using the middle latching rotary switch T. The base values available are 0.1 second, 0.5 seconds, 2 seconds, 5 seconds, 1 minute, 2 minutes, 5 minutes, 1 hour, 2 hours and 4 hours. The total time is the time base multiplied by the multiplier. The multiplier xT is set using the upper rotary switch xT and is between 1 and 10. This allows times between 0.1 second (time base 0.1 second and multiplier 1) and 40 hours (time base 4 hours and multiplier 10) to be set. * The maximum load can be used from a delay or cycle time of 5 minutes. For shorter times, the maximum load is reduced as follows: Up to 2 seconds to 15%, up to 2 minutes to 30%, up to 5 minutes to 60%.
