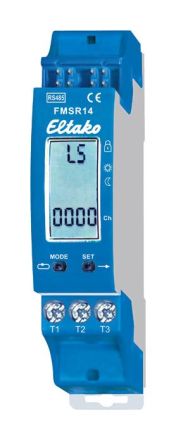

Multifunctional sensor relay with display and 5 channels (brightness, twilight, wind, rain and frost) for the Eltako RS485 bus. Standby loss only 0.1 watt. Modular device for mounting on DIN-EN 60715 TH35 rail. 1 division unit = 18mm wide, 58mm deep. Connection to the Eltako RS485 bus, cross-wiring bus and power supply with jumper. This multifunctional sensor relay evaluates the radio telegrams of the FWS61 radio weather data transmitter module and, depending on the setting, issues corresponding switching commands directly to the RS485 bus and also to the radio network via the display using the MODE and SET buttons. This also allows decentrally installed radio actuators to be controlled. If only centrally installed actuators for controlling shading elements are to be addressed by the FWS61, it is sufficient to teach in the FSB14 actuators using the PCT14 PC tool. An FMSR14 is then not required. For the FMSR14 sensor relay to function, a device address must be assigned by the FAM14 radio antenna module, as described in the operating instructions.
