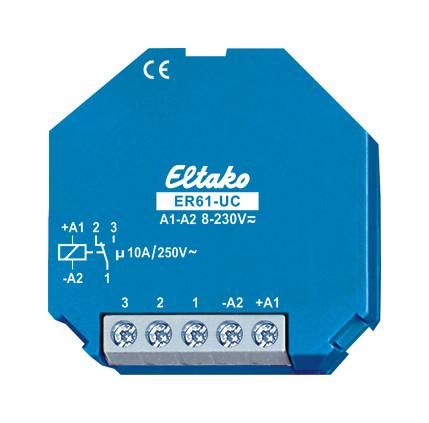

Eltako 61001601 switching relay ER61-UC 1 changeover contact flush mounting

In stock
SKU: 187485
€33.72
Into a basketIn the basketGo

Overview

Switching relay UC. 1 changeover contact, potential-free 10A/250V AC, incandescent lamps 2000W. No standby loss. For installation and surface mounting. 45 mm long, 45 mm wide, 18 mm deep. State-of-the-art hybrid technology combines the advantages of wear-free electronic control with the high performance of special relays. Universal control voltage 8..230V UC.

Very low switching noise. By using a bistable relay, there is no coil power loss and no heating as a result, even when switched on. The relay contact can be open or closed when commissioned and synchronizes when first activated.

This relay is not suitable for feedback with the switching voltage of a dimmer switch. Only use the ESR12DDX-UC, ESR12NP-230V+UC or ESR61NP-230V+UC relays for this purpose. The electronics have no power supply of their own and therefore no standby loss. The microcontroller is only activated when the control contact is closed, which switches the bistable relay in the correct direction. When the control contact is opened or the control voltage drops, it switches back.

Property Value
Mounting type: Flush-mounted
Rated current: 10 A
Control voltage type 1: AC/DC
Control voltage 1: 8 to 230 V
Max. fluorescent lamp load: 1000 VA
Max. switching current (cos phi = 0.6): 4 A
Installation depth: 18 mm
Function: semi-electronic
Max. incandescent lamp load: 2000 W
Max. fluorescent lamp load (parallel compensated): 500 VA
Max. Fluorescent lamp load (duo circuit): 1000 VA
Supply voltage: 250 V
Frequency of control voltage 1: 50 Hz
Type of supply voltage: AC
Number of contacts as normally open: 1

Characteristics

Type of voltage of the supply voltageAC
Supply voltage250 V
Max. fluorescent lamp load1000 VA
ManufacturerELTAKO
HAN61001601
GTIN4010312205358
Number of contacts as normally open1
Rated current10A
Installation depth18 mm
FunctionPartially electronic
Mounting typeFlush-mounted
Supply voltage250V
