Finder 38.21.0.024.0060 coupling relay

In stock

SKU: 272651

Price on request

€28.89

€0

Overview

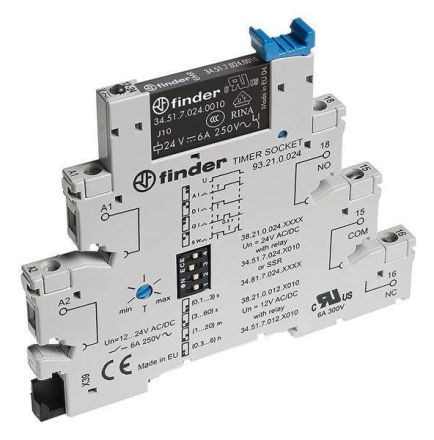

Slim time relay for DIN rail with screw connections, socket with integrated time functions, 4 time functions + time ranges up to 6 hours, 1 changeover contact 6 A/250 V AC, connection voltage 124 V AC/DC, contact material AgNi, LED and EMC suppression are integrated in the socket.

Property	Value
Number of outputs, delayed, changeover contact:	1
Design of the electrical connection:	Screw connection
Can be plugged onto contactor:	no
Outputs, switchable delayed/undelayed:	no
Voltage type for actuation:	AC/DC
Time range:	0.1 to 21600 s
Rated control supply voltage Us at AC 50 Hz:	24 V
Rated control supply voltage Us at AC 60 Hz:	24 V
Rated control supply voltage Us at DC:	24 V
Width:	6.2 mm
Depth:	75.6 mm
Height:	87.9 mm
With plug-in base:	yes
Remote control possible:	no
Suitable as remote control:	no
On-delayed function:	yes
Off-delayed function:	no
Passing switch-on function:	yes
Function Wiping off:	no
Star/delta function:	no
Pulse-forming function:	yes
Flashing function starting with pause, fixed time:	no
Flashing function starting with pulse, fixed time:	yes
Clocking function starting with pause, variable:	no
Clocking function starting with pulse, variable:	no
With semiconductor output:	no
Rated current:	6 A
Suitable for DIN rail mounting:	yes
Suitable for front mounting:	no
