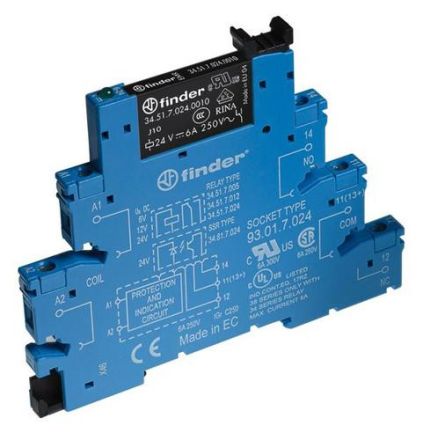

Finder 38.51.0.012.5060 coupling relay

In stock

SKU: 272749

Price on request

€14.93

€0

Overview

Coupling relay for DIN rail with screw connections, 1 changeover contact 6 A / 250 V AC, coil voltage 12 V AC/DC, contact material AgNi hard gold-plated, LED and EMC suppression are integrated in the socket.

Property	Value
Number of contacts as changeover contact:	1
Rated control supply voltage Us at AC 50 Hz:	12 V
Rated control supply voltage Us at AC 60 Hz:	12 V
Rated control supply voltage Us at DC:	12 V
Voltage type for actuation:	AC/DC
Design of the electrical connection:	screw connection
Drive, polarity:	polarized
Height:	87.9 mm
Width:	6.2 mm
Depth:	75.6 mm
Switching behavior of the drive:	monostable
Type of switching contact:	Single contact
With positively guided contacts:	no
With removable terminals:	no
Complete device with base:	yes
Protection class (IP):	IP20
Rated current:	6 A
With LED display:	yes
